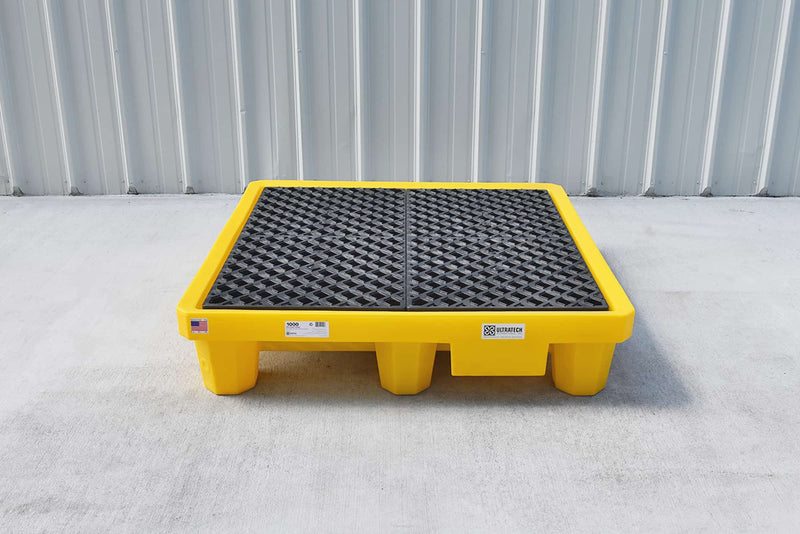

Ultra-Spill Pallet®

Description

The Ultra-Spill Pallet® is specially constructed to support heavy loads and designed to be easily used and transported. Its 100% polyethylene (LLDPE) construction makes it compatible with a wide range of chemicals, while its low-rise walls allow easier accessibility for pouring.

It helps meet spill containment regulations for up to four drums, and comply with SPCC and EPA spill containment requirements.

Product Highlights

  • High load capacity: 6,000 lbs. for Ultra-Spill Pallet P4, 3,000 lbs. for Ultra-Spill Pallet P2.
  • Bright, safety yellow sidewalls are translucent, offering convenient visual leak detection.
  • 100% polyethylene (LLDPE) construction - compatible with a broad range of chemicals, including acids and corrosives.

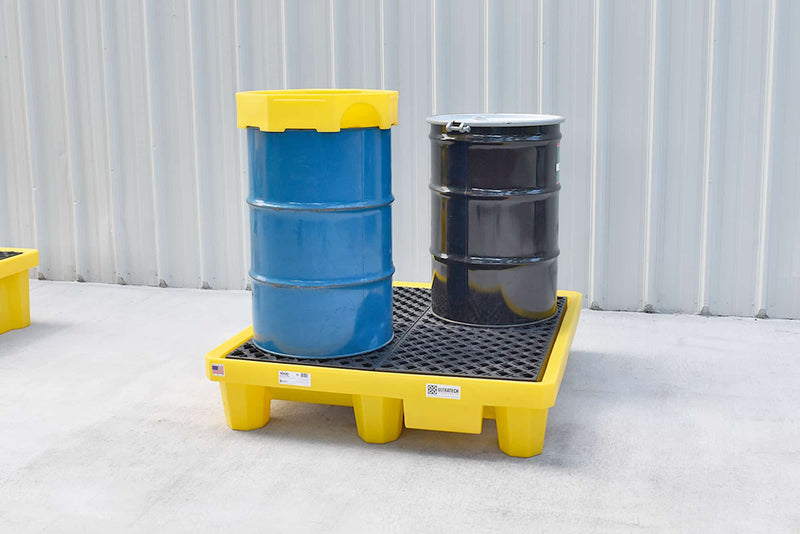

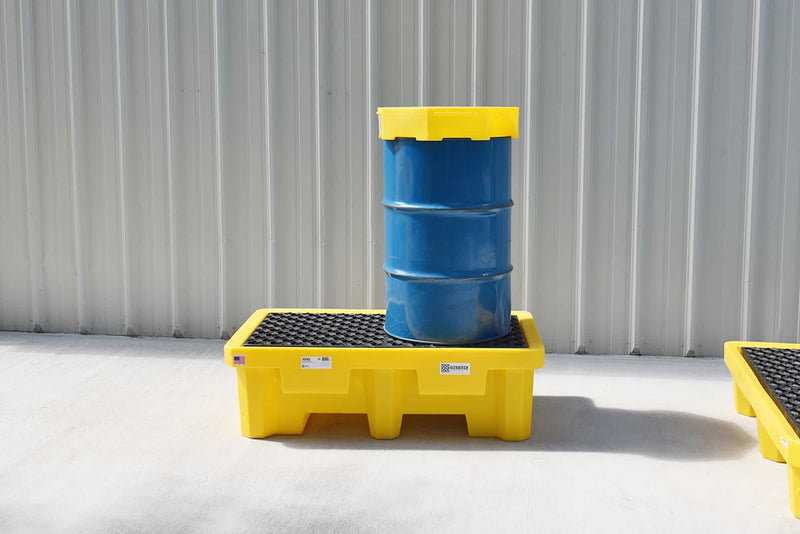

Ultra-Spill Pallets® - P2 (Two-Drum) Model

Part # Model Dimensions in. (mm) Grating Surface in. (mm) Weight Capacity UDL lbs. (kg) Containment Capacity gal. (L) Weight lbs. (kg)
UT-1010 P2 Pallet Model Without Drain 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) 48 x 24 (1219.2 x 609.6) 3000 (1360.8) 66 (249.8) 63 (28.6)
UT-1011 P2 Pallet Model With Drain 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) 48 x 24 (1219.2 x 609.6) 3000 (1360.8) 66 (249.8) 63 (28.6)

Ultra-Spill Pallets® - P4 (Four-Drum) Model

Part # Model Dimensions in. (mm) Grating Surface in. (mm) Weight Capacity UDL lbs. (kg) Containment Capacity gal. (L) Weight lbs. (kg)
UT-1000 P4 Pallet Model Without Drain 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) 48 x 48 (1219.2 x 1219.2) 6000 (2721.6) 66 (249.8) 90 (40.8)
UT-1001 P4 Pallet Model With Drain 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) 48 x 48 (1219.2 x 1219.2) 6000 (2721.6) 66 (249.8) 90 (40.8)

Options

Part # Model Product Image Dimensions in. (mm) Containment Capacity gal. (L) Weight lbs. (kg)
UT-0678 Ramp for P1 Plus, and P4 Pallets (Excluding P4 Plus) 68.5 x 28.5 x 12 (1739.9 x 723.9 x 304.8) 318 (1203.8) 73 (33.1)
UT-1006 P4 Pullover Cover 13 x 12 x 5 (330.2 x 304.8 x 127) N/A 7 (3.2)

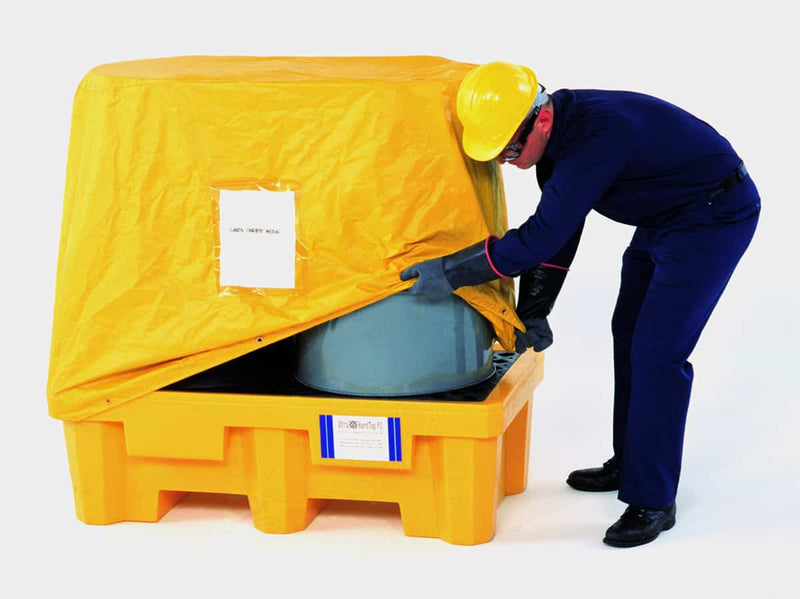

UT-1016 P2 Pullover Cover 13 x 11 x 3 (330.2 x 279.4 x 76.2) N/A 7 (3.2)
Product form

Ultra-Spill Pallet®

$360.00

Capacity: N/A Gallons

    Description

    The Ultra-Spill Pallet® is specially constructed to support heavy loads and designed to be easily used and transported. Its 100% polyethylene (LLDPE) construction makes it compatible with a wide range of chemicals, while its low-rise walls allow easier accessibility for pouring.

    It helps meet spill containment regulations for up to four drums, and comply with SPCC and EPA spill containment requirements.

    Product Highlights

    • High load capacity: 6,000 lbs. for Ultra-Spill Pallet P4, 3,000 lbs. for Ultra-Spill Pallet P2.
    • Bright, safety yellow sidewalls are translucent, offering convenient visual leak detection.
    • 100% polyethylene (LLDPE) construction - compatible with a broad range of chemicals, including acids and corrosives.

    Ultra-Spill Pallets® - P2 (Two-Drum) Model

    Part # Model Dimensions in. (mm) Grating Surface in. (mm) Weight Capacity UDL lbs. (kg) Containment Capacity gal. (L) Weight lbs. (kg)
    UT-1010 P2 Pallet Model Without Drain 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) 48 x 24 (1219.2 x 609.6) 3000 (1360.8) 66 (249.8) 63 (28.6)
    UT-1011 P2 Pallet Model With Drain 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) 48 x 24 (1219.2 x 609.6) 3000 (1360.8) 66 (249.8) 63 (28.6)

    Ultra-Spill Pallets® - P4 (Four-Drum) Model

    Part # Model Dimensions in. (mm) Grating Surface in. (mm) Weight Capacity UDL lbs. (kg) Containment Capacity gal. (L) Weight lbs. (kg)
    UT-1000 P4 Pallet Model Without Drain 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) 48 x 48 (1219.2 x 1219.2) 6000 (2721.6) 66 (249.8) 90 (40.8)
    UT-1001 P4 Pallet Model With Drain 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) 48 x 48 (1219.2 x 1219.2) 6000 (2721.6) 66 (249.8) 90 (40.8)

    Options

    Part # Model Product Image Dimensions in. (mm) Containment Capacity gal. (L) Weight lbs. (kg)
    UT-0678 Ramp for P1 Plus, and P4 Pallets (Excluding P4 Plus) 68.5 x 28.5 x 12 (1739.9 x 723.9 x 304.8) 318 (1203.8) 73 (33.1)
    UT-1006 P4 Pullover Cover 13 x 12 x 5 (330.2 x 304.8 x 127) N/A 7 (3.2)
    UT-1016 P2 Pullover Cover 13 x 11 x 3 (330.2 x 279.4 x 76.2) N/A 7 (3.2)
