Ultra-Filter Sock®

Description

Stop harmful substances from entering the stormwater system

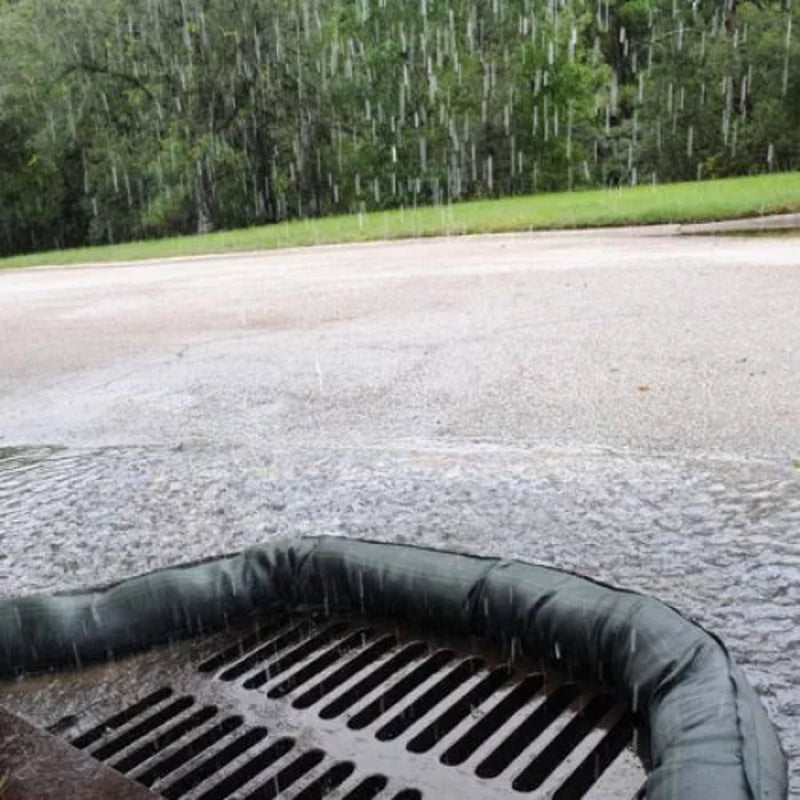

The Ultra-Filter Sock® is the ultimate in above-drain protection. With the different filter media options available, the Ultra-Filter Sock® is the only product capable of removing many different types of pollutants. Placed in front of storm drains, the woven geotextile material allows water to flow through into the storm drain while the media inside of the unit removes pollutants.

Product Highlights

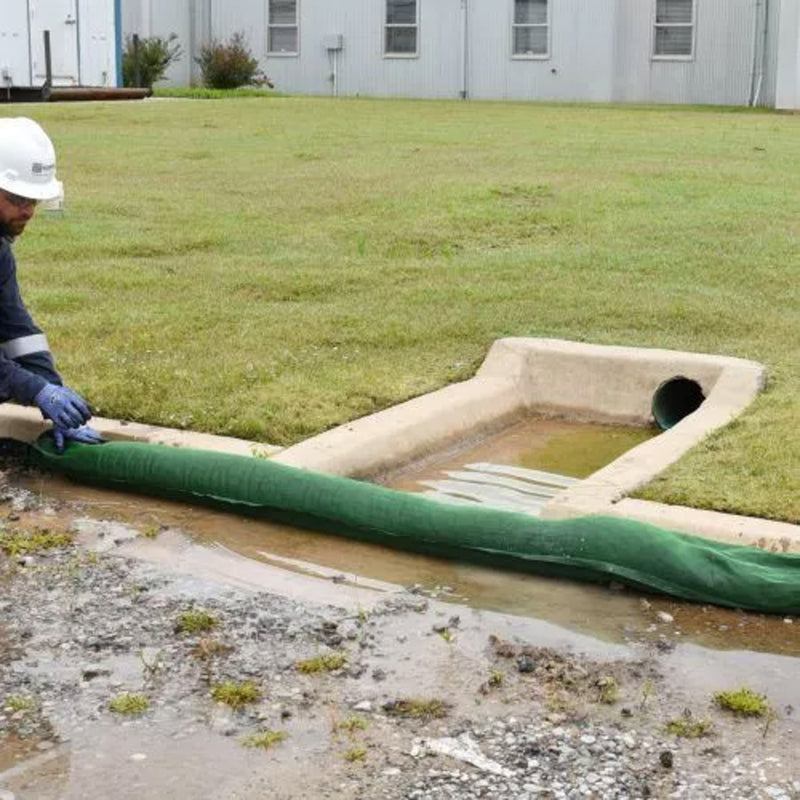

  • Use in front of storm drains, around downspouts, in gullies and ditches, or anywhere there is potential for harmful stormwater runoff.
  • Woven polymer casing allows water to pass through quickly while filtration media inside removes pollutants.
  • High UV rating allows extended life in sun and elements.
  • Available in 9-foot lengths. Units can be overlapped for longer coverage.

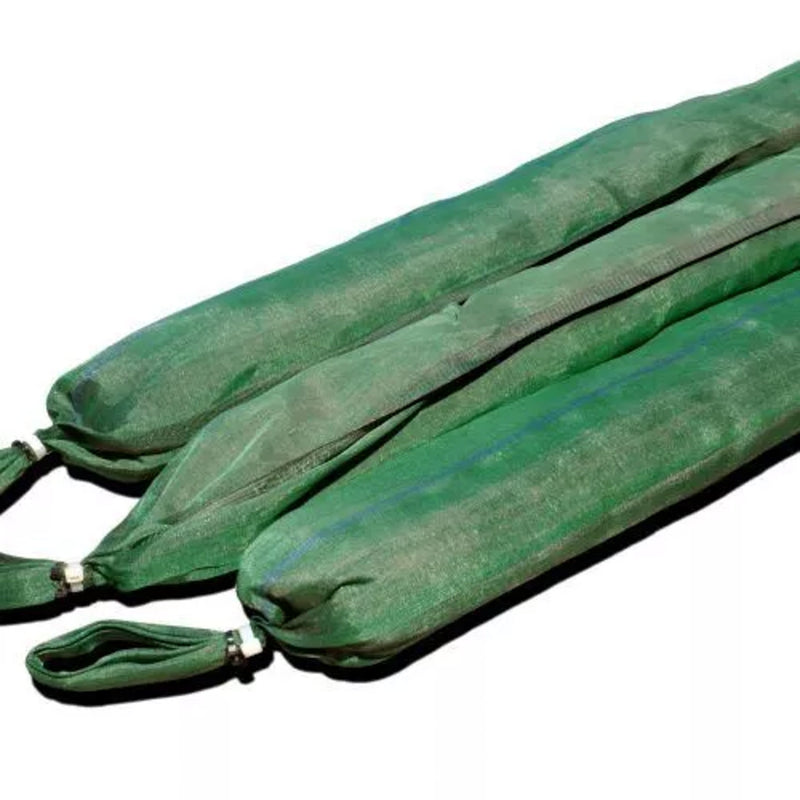

  • Looped ends allow units to be staked in place and also assist in transport.
  • Available with different types of media depending on which pollutant is present. (Multiple Ultra-Filter Socks can be used in a “treatment train” if the potential for more than one contaminant or a large quantity of a single contaminant is present).
  • Option for heavy-metal removal available.

Advantages

The Ultra-Filter Sock® has several distinct advantages that could prove to be a deciding factor in choosing it to protect your drain from incoming pollutants:

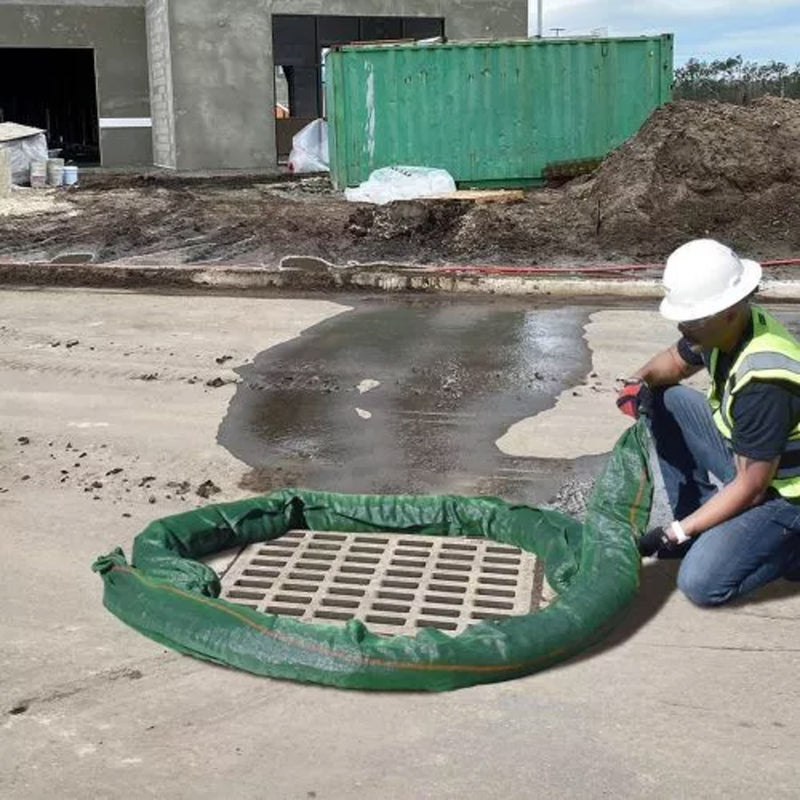

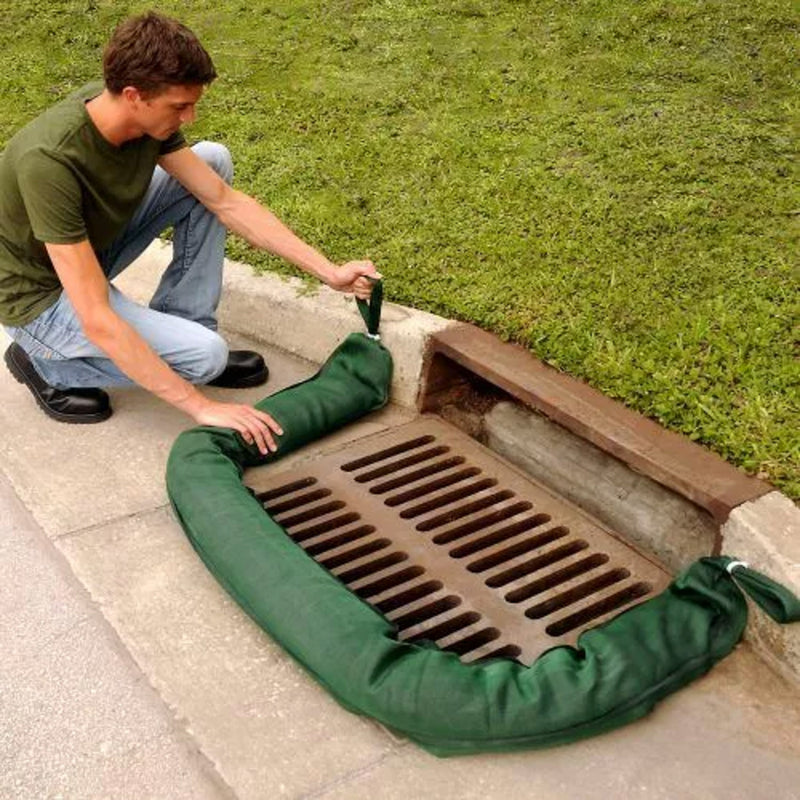

1. Ease of use and installation – with the Ultra-Filter Sock®, you simply lay it down in front of a drain or inlet.  No hardware to install, no heavy grates to lift.

2. Versatility – the Ultra-Filter Sock® has multiple filtering media options available which enables it to remove pollutants that a lot of other stormwater products cannot remove.

3. Multiple media options – not only are there several media options available but you can use them together in a “treatment train” so you can filter out many different pollutants.

Additional Information

  • If a “clean” installation is a significant concern or the Ultra-Filter Sock could pose a tripping threat to pedestrian traffic or an obstruction for street sweepers or other equipment, it may not be the ideal solution.
  • Since the Ultra-Filter Socks® are only available in one length (9′), you can simply use multiple units when more than nine feet is required.  It is recommended that you overlap units to insure complete coverage/protection.
  • Due to the nature of the filter media, some fine dust and powder can be released from the sock during transport (this is especially true of socks with HMRM). We recommend rinsing the Ultra-Filter Socks with a hose on grass or a vegetated area prior to use. This will allow most of the fines to be removed and captured away from any catch basin.

Media Descriptions

  • Activated Carbon: Excellent “polishing media." Helps remove certain chemicals, hydrocarbons and odors.
  • Sorb 44: Used to remove oil and other hydrocarbons.
  • Sediment Removal: Recycled rubber media provides weight, keeps unit in place, allows maximum water flow.
  • Phos Filter: Excellent for removal of phosphorous.
  • Heavy Metal Removal: Custom filter media helps remove zinc, lead, copper and other harmful, heavy metals.

Ultra-Filter Socks

Model Dimensions in. (mm) Quantity Weight lbs. (kg)
Carbon 108 x 7 x 4 (2743.2 x 177.8 x 101.6) 1 40 (18.1)
Sorb 44 108 x 7 x 4 (2743.2 x 177.8 x 101.6) 1 15 (6.8)
Sediment 108 x 7 x 4 (2743.2 x 177.8 x 101.6) 1 44 (20)
Sediment - Bulk Pack of 36 108 x 7 x 4 (2743.2 x 177.8 x 101.6) 36 1500 (680.39)
PhosFilter 108 x 7 x 4 (2743.2 x 177.8 x 101.6) 1 66 (29.9)
HMRM 1.0 108 x 7 x 4 (2743.2 x 177.8 x 101.6) 1 35 (15.9)



WARNING: Part #9454 can expose you to chemicals including lead which is known to the state of California to cause cancer, birth defects, or reproductive harm. Part #9457 can expose you to chemicals including hexavalent chromium which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
