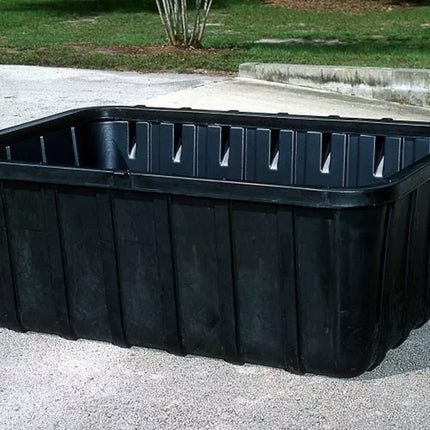

Ultra-Containment Sump®

Description

Rigid Secondary Containment for Fuel Tanks

The Ultra-Containment Sump is a completely portable solution that eliminates costly spills while storing fuels, oils, and other hazardous liquids. Has rugged, all-polyethylene construction that will not rust or corrode.

Product Highlights

  • Use with optional Ultra-Self Bailer for outdoor spill containment - self bailer allows clean stormwater to passively drain from sump while capturing hydrocarbons. (Note: To use the Ultra-Self Bailer, Ultra-Containment Sumps WITH 3/4" DRAIN must be specified when ordering).

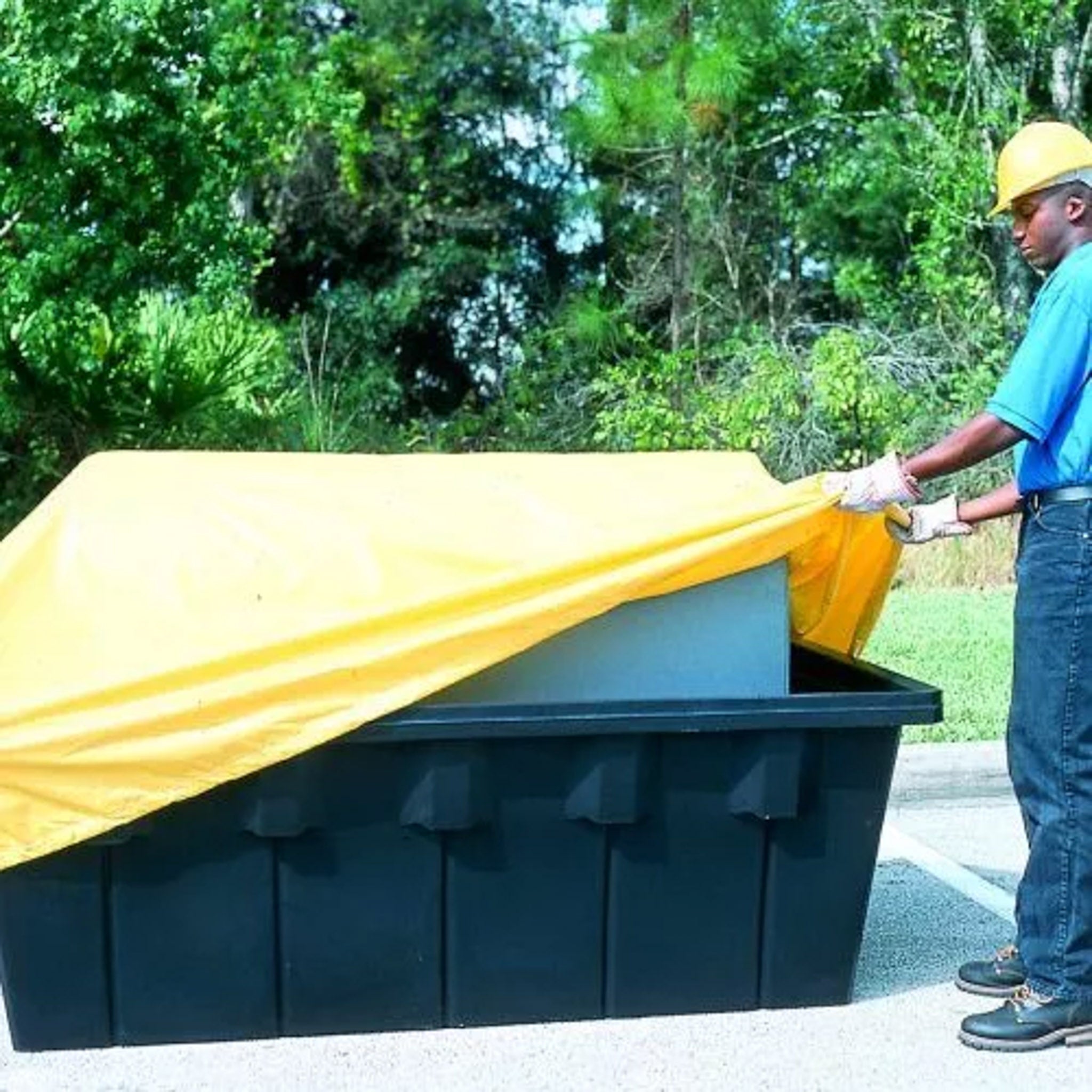

  • Pullover cover option keeps rainwater out, yet allows easy access for pumping waste collection.

Additional Information

  • It is recommended that fuel tanks and anything else that is in the sump be removed prior to moving. The easiest way to move a containment sump is to place it on top of a wooden shipping pallet (not included).
  • The sumps are stretch wrapped and ship via LTL. They do NOT ship on pallets.
  • All of the Ultra-Containment Sumps are available with or without a drain. The drain is a 3/4″ fitting. In addition, the 1,000 gallon containment sump also has a 2″ drain option available.
  • The Ultra-Self Bailer allows water to drain from the containment sumps while filtering out any hydrocarbons.
  • The optional pullover cover is typically used to keep out rain/elements and dirt.
  • The Ultra-Containment Sumps are rotationally molded with low-density polyethylene.

Dimensional Information:

  • 275 Gallon
    • Top outside dimensions In. (mm) –  85 x 44 x 29 (2,159 x 1,118 x 737)
    • Bottom inside dimensions In. (mm) – 71 x 31 (1,803 x 788)
  • 550 Gallon
    • Top outside dimensions In. (mm) –  90 x 61 x 32¾ (2,286 x 1,549 x 832)
    • Bottom inside dimensions In. (mm) –  75 x 47¾ (1,905 x 1,213)
  • 1000 Gallon
    • Top outside dimensions In. (mm) –  149 x 64 x 33 (3,785 x 1,626 x 838)
    • Bottom inside dimensions In. (mm) –  138 x 52 (3,505 x 1,321)

Ultra-275 Containment Sumps

Model Dimensions in. (mm) Containment Capacity gal. (L) Weight lbs. (kg)
275 Sump Without Drain 84.5 x 43.8 x 29 (2146.3 x 1111.3 x 736.6) 360 (1362.7) 90 (40.8)
275 Sump With Drain 84.5 x 43.8 x 29 (2146.3 x 1111.3 x 736.6) 360 (1362.7) 90 (40.8)


Ultra-550 Containment Sumps

Model Dimensions in. (mm) Containment Capacity gal. (L) Weight lbs. (kg)
550 Sump, Without Drain 90 x 61 x 32.8 (2286 x 1549.4 x 831.9) 605 (2290.2) 108 (49)
550 Sump, With Drain 90 x 61 x 32.8 (2286 x 1549.4 x 831.9) 605 (2290.2) 108 (49)


Ultra-1000 Containment Sumps

Model Dimensions in. (mm) Containment Capacity gal. (L) Weight lbs. (kg)
1000 Sump, Without Drain 149 x 64 x 33 (3784.6 x 1625.6 x 838.2) 1100 (4164) 244 (110.7)
1000 Sump, With 3/4" Drain 149 x 64 x 33 (3784.6 x 1625.6 x 838.2) 1100 (4164) 244 (110.7)
1000 Sump, With 2" Drain 149 x 64 x 33 (3784.6 x 1625.6 x 838.2) 1100 (4164) 244 (110.7)


Options

Product Name Model Product Image
Ultra-Containment Sump Cover 275 Sump, Pull Over Cover Only
Ultra-Self Bailer Standard
Ultra-Self Bailer Large
Ultra-Self Bailer XL




WARNING: Part #2810 can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
