Ultra-ADA Pad®

Description

Detectable warning system aids the visually impaired

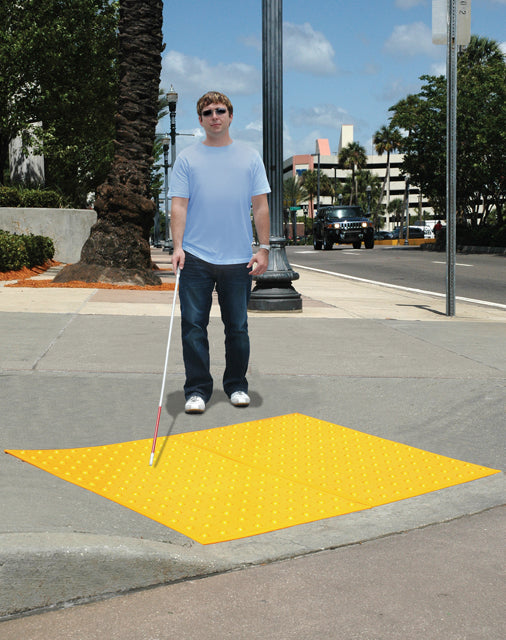

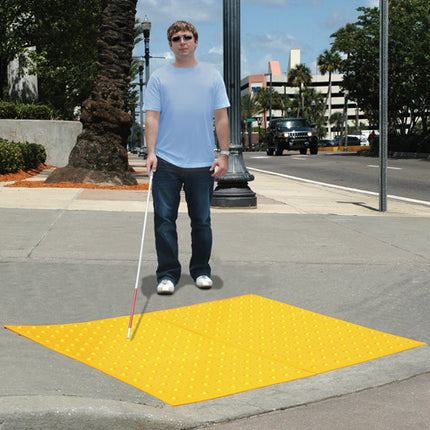

Ultra-ADA Pads are designed for the visually impaired to feel the raised, truncated domes with their feet. This, in combination with a tapping cane, can alert them to an upcoming intersection or other potential hazards.

Product Highlights

  • Available in four (4) sizes: 2’ x 2’, 2’ x 3’, 2’ x 4’ and 2’ x 5’.

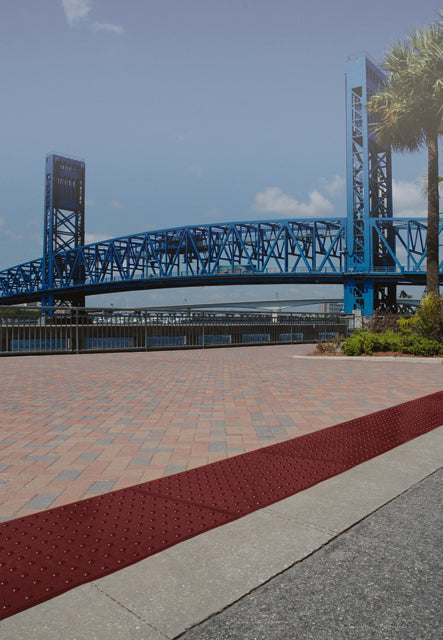

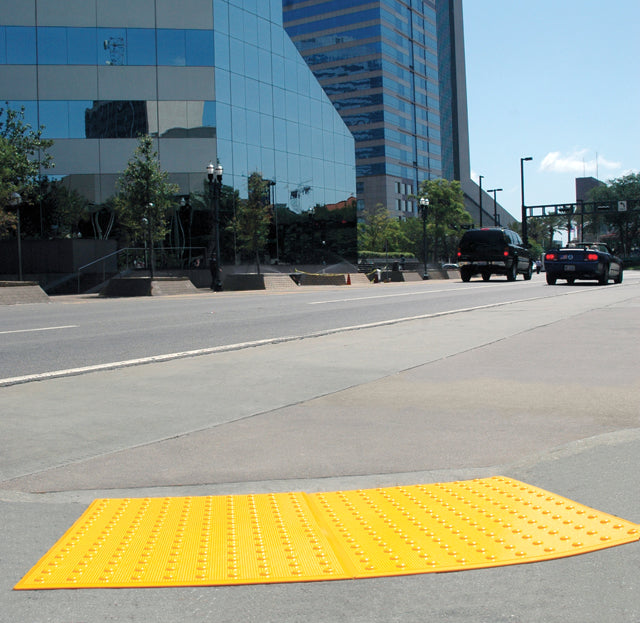

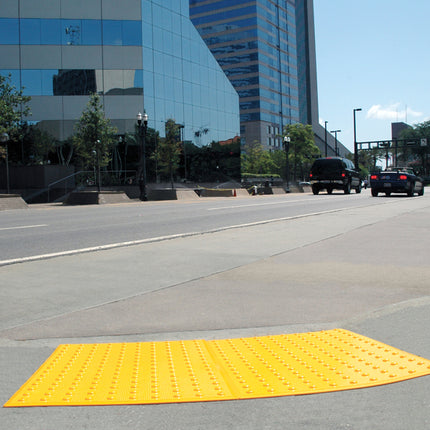

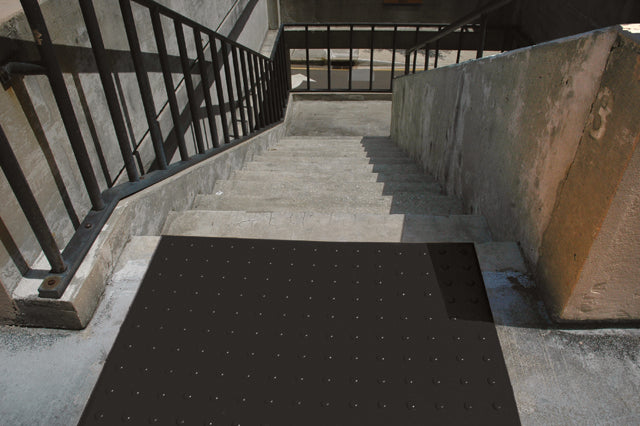

  • Safety yellow color assists people with severe visual impairment. Black, brick red and safety red also available.

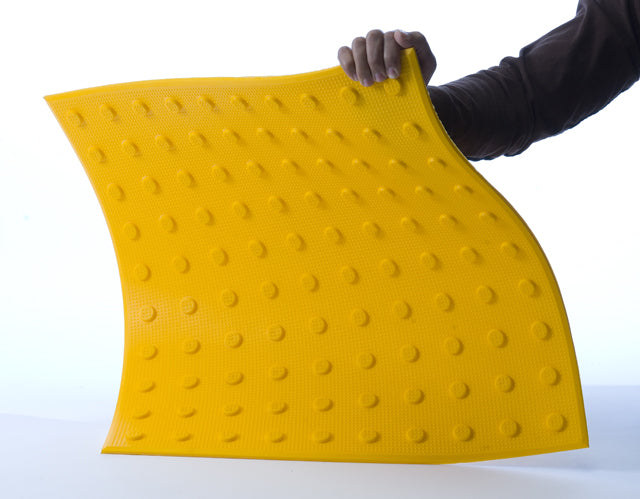

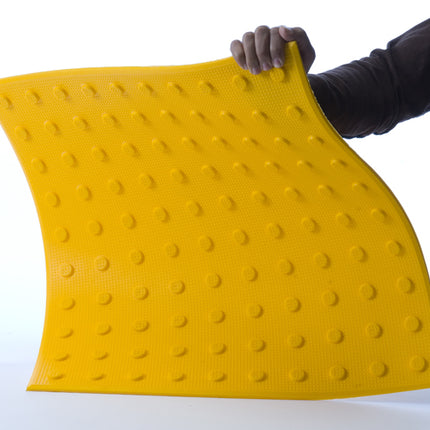

  • Flexible construction forms to fit dips, slopes, and inclines in sidewalks and walkways.
  • Installs quickly and easily using adhesive and anchors (anchors included, adhesive sold separately).
  • Better slip resistance than composites.
  • Better impact resistance than composites.
  • UNBREAKABLE

ADA Pad Adhesive Sold Separately.

Additional Information

  • Ultra-ADA Pads (or some other form of warning pad) are mandated by the Americans with Disabilities Act (ADA), 28 CFR Part 36.
  • Ultra-ADA Pads use two methods to ensure that they stay safely attached to the pavement.  The first method is using an industrial-strength adhesive (sold separately).  And once the adhesive has set, a set of concrete anchors (included) are used in the corners of the pad.
  • The Ultra-ADA Pads are NOT designed to be installed in wet concrete.  They can, however, be installed once any newly poured concrete or cement has fully cured.
  • The requirements as per the ADA are, among other things, that “Detectable warnings…shall contrast visually with adjoining surfaces” and “…differ from adjoining walking surfaces in resiliency or sound-on-cane contact.”  Stamped concrete does not comply with either of these requirements.
  • Ultra-ADA Pads are made from urethane, which can bend to meet curves in the surface.  It can be cut for a better/custom fit and it is practically indestructible.  This is beneficial, not only after it has been installed but also eliminates damage to the pads during shipping/transit/storage.  A common problem with fiberglass pads.
  • State and local governments have different requirements for the amount of coverage.  Local authorities should be contacted to confirm the appropriate size needed for each application.
  • The domes are 0.2″ which meets the regulations.
  • The pads can adhere to asphalt but requires a special adhesive.
  • The pads can be cut to fit your application. Please use proper safety precautions.

  • The adhesive is considered to be a hazardous material and therefore can only be shipped via ground transport.

    Ultra-ADA Pads - Urethane

    Part # Dimensions ft. (m) Color Weight lbs. (kg)
    0750 2 x 2 x 0 (.6 x .6 x 0) Yellow 8 (3.6)
    0753 3 x 2 x 0 (.9 x .6 x 0) Yellow 11 (5)
    0751 4 x 2 x 0 (1.2 x .6 x 0) Yellow 15 (6.8)
    0752 5 x 2 x 0 (1.5 x .6 x 0) Yellow 19 (8.6)

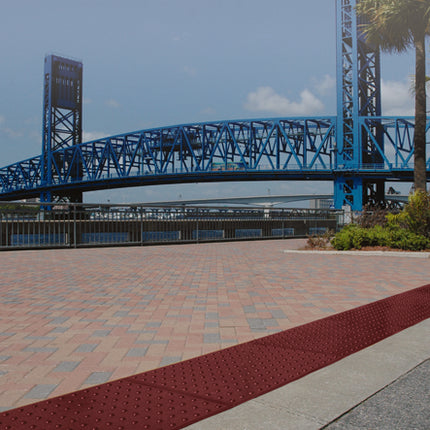

    0760 2 x 2 x 0 (.6 x .6 x 0) Brick Red 8 (3.6)
    0763 3 x 2 x 0 (.9 x .6 x 0) Brick Red 11 (5)
    0761 4 x 2 x 0 (1.2 x .6 x 0) Brick Red 15 (6.8)
    0762 5 x 2 x 0 (1.5 x .6 x 0) Brick Red 19 (8.6)
    0765 2 x 2 x 0 (.6 x .6 x 0) Safety Red 8 (3.6)
    0766 3 x 2 x 0 (.9 x .6 x 0) Safety Red 11 (5)
    0767 4 x 2 x 0 (1.2 x .6 x 0) Safety Red 15 (6.8)
    0768 5 x 2 x 0 (1.5 x .6 x 0) Safety Red 19 (8.6)
    0756 2 x 2 x 0 (.6 x .6 x 0) Black 8 (3.6)
    0759 3 x 2 x 0 (.9 x .6 x 0) Black 11 (5)
    0757 4 x 2 x 0 (1.2 x .6 x 0) Black 15 (6.8)
    0758 5 x 2 x 0 (1.5 x .6 x 0) Black 19 (8.6)



    Helps Comply with These Rules & Regulations

    • ADA Accessibility Guidelines for Buildings and Facilities (ADAAG)
    • ADA Standards for Accessible Design (28 CFR Part 36 (Section 4.29))
