Ultra-Curb Guard Plus® Plus Model
Protect curb inlets from oil and sediment-laden stormwater runoff

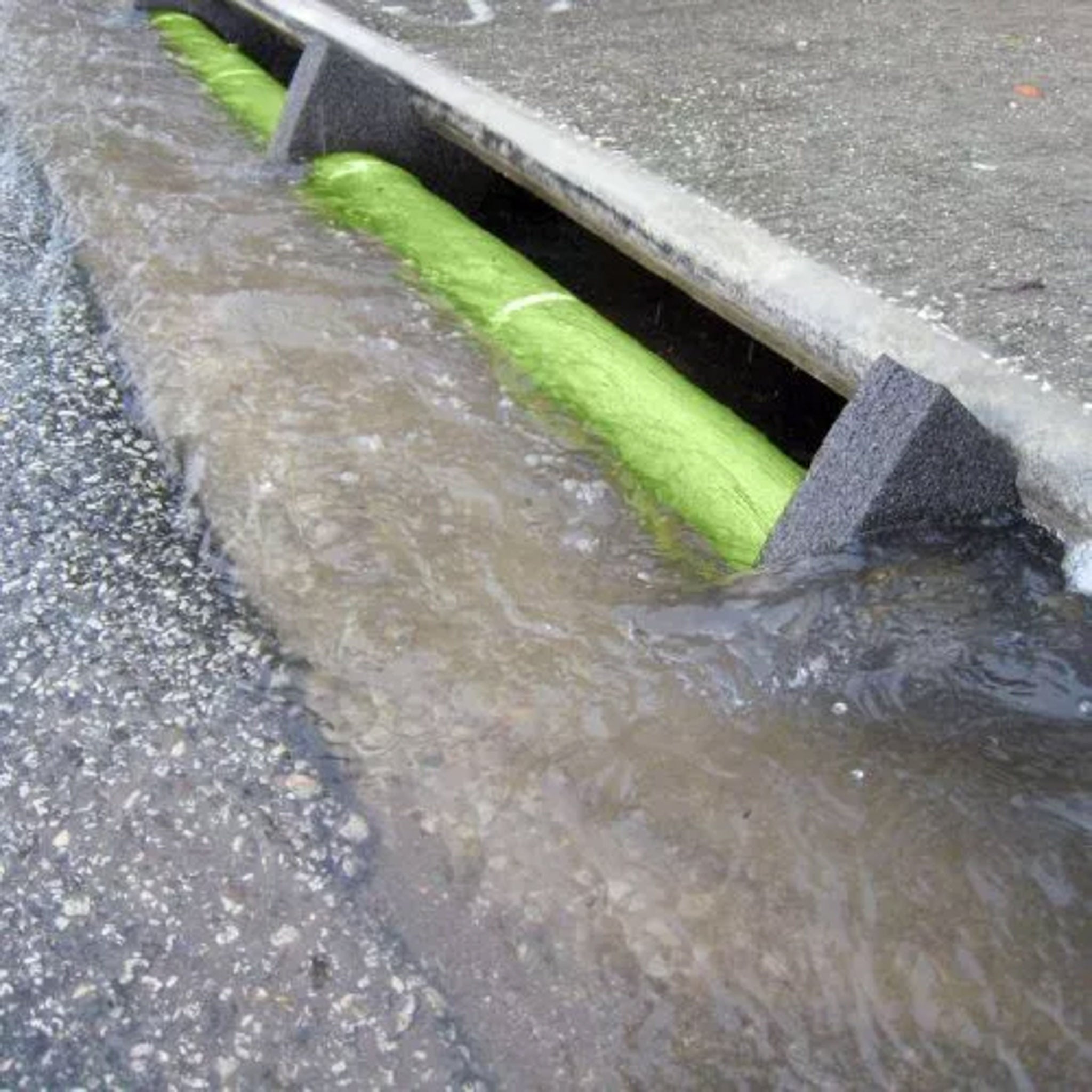

The Ultra-Curb Guard Plus can withstand a substantial amount of rainwater that curb inlets often receive. The heavy-duty foam inserts wedge securely into the inlet ensuring the unit stays in place. The polypropylene material is absorbent and engineered to filter large amounts of water without ponding or flooding.
Any product designed to filter the water coming into one needs two important features: (1) the ability to handle large volumes of water and (2) the ability to stay in place when (1) happens.
Product Highlights

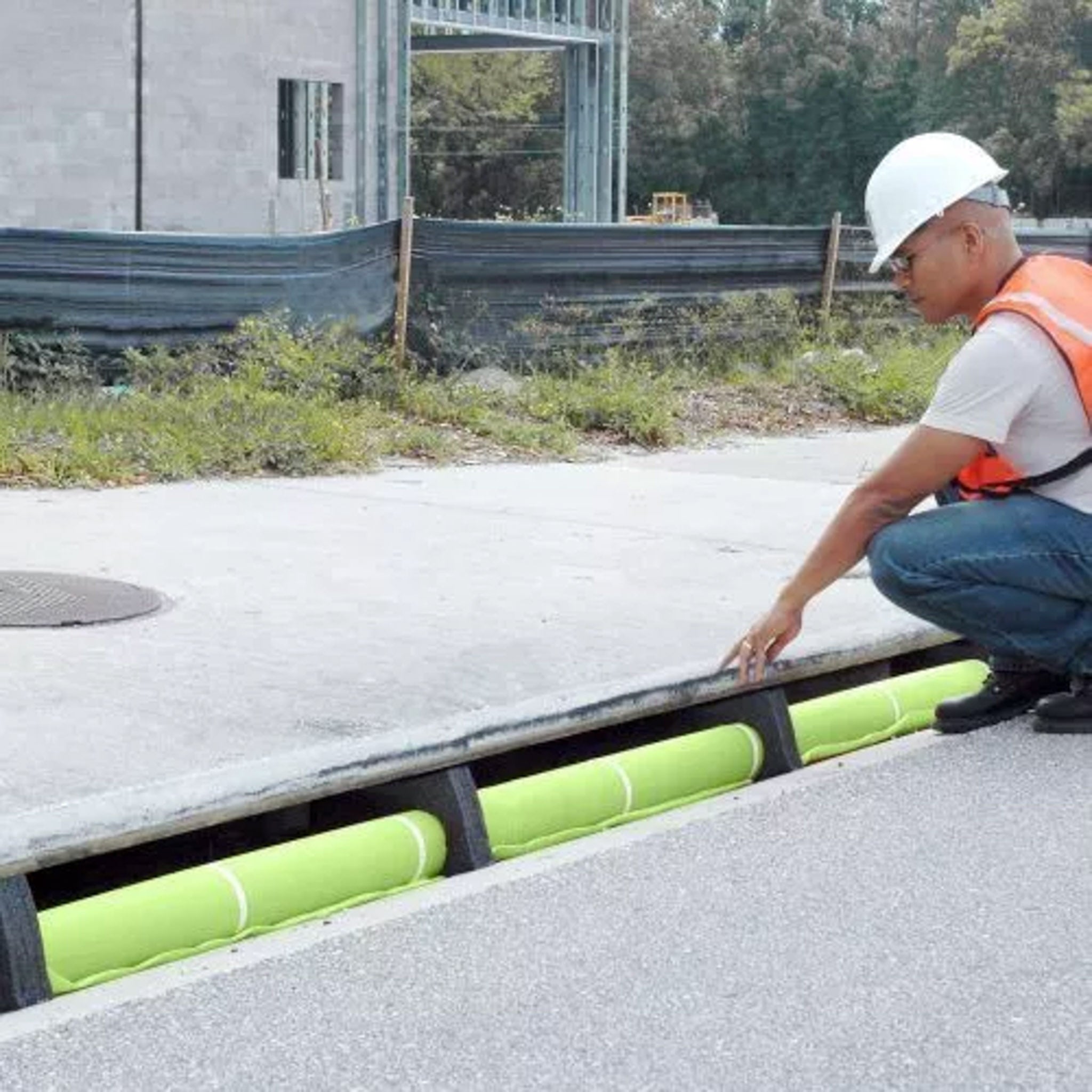

- Quick and easy installation.
- Modular design-build to any length.
- Units can be quickly and easily connected to form longer lengths.
- Wedge-shaped, heavy-duty foam secures unit in curb inlet.
- Woven, polypropylene material provides high flow rate — will not cause ponding or flooding.
Additional Information
- The flow rate for the 3′ model is 28 GPM
- The flow rate for the 4′ model is 37.3 GPM
- We offer two lengths for that reason. Part #9248 is 36″ long and Part #9251 is 48″ long. In addition to the two lengths, the units can also be cut so that you can have a “custom fit”. The foam wedges that are used to keep the unit secured have some give so that they’ll fit a range of heights. If necessary, they are also perforated so that small sections can be cleanly torn off to allow a good fit in smaller inlets.
- We can ship up to (30) of the 36″ (p/n 9248) or 48″ (p/n 9251) units on a single, standard pallet. The shipping weight per unit for the 36″ unit is 6 lbs. (2.72 kg). The 48″ unit is 8 lbs. (3.6 kg). Freight class is 77.5.
-
In order for a product like this to work effectively, it needs to stay in place. You don’t have to look very far to see other filtering products that have been washed away or pushed aside by the rainwater it is supposed to be filtering. The Ultra-Curb Guard’s foam inserts do an outstanding job of keeping it in place, even in the heaviest storms. Compared to other solutions (gravel bags, rolls of material, perforated PVC piping, etc.), the Ultra-Curb Guard Plus has a fairly low profile and is less likely to be damaged by street sweepers, traffic, etc. It’s also a much cleaner looking install.
Ultra-Curb Guards, Plus Model
| Dimensions in. (mm) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|
| 36 x 4 x 4 (914.4 x 101.6 x 101.6) | 1 (3.79) | 6 (2.7) |
| 48 x 4 x 4 (1219.2 x 101.6 x 101.6) | 1.4 (5.3) | 8 (3.6) |
Note: The foam wedges that hold the product in place makes its overall depth 10″ (254 mm).
Lead Times
Most products ship within 1-3 business days depending on availability. If you need a product sooner than this, please call 409-429-4834 to discuss availability and shipping options.
